Specifications

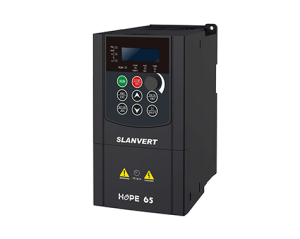

The Hope65 Series Smart AC Drive supports both V/F control and vector control, offering energy-efficient operation and precise control to meet various load requirements. With the integrated G/P mode, it automatically switches based on load conditions, enhancing system reliability and adaptability. The built-in Dynamic Braking Unit (DBU) optimizes braking performance, reduces downtime, and enhances safety during operation.
Slanvert Hope adalah inverter (Variable Frequency Drive / VFD) low-voltage yang digunakan untuk mengontrol kecepatan motor AC (umumnya motor induksi 3 phase). Seri ini dirancang untuk aplikasi industri umum seperti pompa, fan, conveyor, dan mesin produksi.
⚙️ Spesifikasi Utama Hope65 Series
🔌 Input Power
- Tegangan:
- 1 Phase: 220–240V (±15% ~ +10%)
- 3 Phase: 380–440V (±15% ~ +10%)
Frekuensi: 50 / 60 Hz (47–63 Hz)
⚡ Output
- Tegangan output: 0 – sesuai tegangan input
- Frekuensi output:
- 0 – 500 Hz (V/F & Vector control)
Resolusi frekuensi: hingga 0.01 Hz (typical low voltage drive)
🔋 Power Range
- 1 Phase 220V: 0.75 – 5.5 kW
- 3 Phase 380V: 0.75 – 22 kW
➡️ Cocok untuk aplikasi kecil–menengah (mesin produksi, pompa kecil, conveyor, dll)
📈 Overload Capacity
- 150% arus nominal: 60 detik
- 170% arus nominal: 12 detik
- 190% arus nominal: 1.5 detik
🎛️ Control Mode
- V/F Control
- SVC (Sensorless Vector Control)
➡️ Lebih stabil dibanding inverter basic
🔌 I/O & Komunikasi
- Digital Input: 5 DI
- Digital Output: 1 DO
- Relay Output: 1 RO
- Analog Input: 1 AI
- Analog Output: 1 AO
- Communication: RS485 (Modbus)
🚀 Fitur Utama
- Built-in braking unit (DBU)
- Auto torque boost
- Slip compensation
- Multi-step speed control
- JOG function
- Linear / S-curve acceleration & deceleration
- AVR (Auto Voltage Regulation)
🧠 Fungsi Tambahan
- DC braking (0–36 detik)
- Carrier frequency: 0.8 – 8 kHz (hingga 16 kHz opsional)
- Removable keypad (panel bisa dilepas)
- G/P mode (General / Pump mode)
🌡️ Kondisi Operasi
- Suhu kerja: -10°C sampai +40°C
- Cooling: Forced air cooling
- Proteksi: lengkap (overload, overvoltage, dll)
🏭 Aplikasi Umum
- Conveyor ringan
- Mesin packaging
- Fan & blower kecil
- Pompa air kecil
- Mesin produksi umum
👍 Kelebihan Hope65
- Compact & ekonomis
- Sudah support vector control (lebih stabil)
- Built-in braking (tidak perlu external resistor kecil)
- Mudah setting & user friendly
⚠️ Kekurangan
- Power terbatas (max ±22 kW)
- Tidak cocok untuk heavy-duty (crane, hoist besar)
- Fitur tidak selengkap seri high-end (Hope530)
