- Cabinet solution
- VF, VF+PG, SVC, closed-loop Vector Control
- Configurable buttons and indicator lights, with optional support for reactors.
- Optional IO/ Encoder/ Communication card
- Integrated logic control: comparator, logic, timer, arithmetic unit
- Optional LCD panel, LED with potentiometer
⚙️ Specification
🔌 Input (Power Supply)
- Tegangan: 3 Phase 380–440V
- Frekuensi: 50/60 Hz
- Toleransi tegangan: -15% ~ +10%
- Ketidakseimbangan tegangan: < 3%
⚡ Output
- Tegangan output: 0 – input voltage
- Frekuensi output:
- V/F control: 0 – 650 Hz
- Vector control: 0 – 200 Hz
⚙️ Performance
- Metode kontrol:
- V/F
- V/F + PG (encoder)
- SVC (Sensorless Vector Control)
- Closed-loop vector control
Starting torque:
- ≥ 150% pada 0.5 Hz
Akurasi kecepatan:
- Tanpa PG: ±0.5%
- Dengan PG: ±0.05%
Overload capacity:
- 150% (60 detik)
- 180% (15 detik)
- 200% (2 detik)
🎛️ I/O & Control
- Analog Input (AI): 3 channel (0–10V / 4–20mA)
- Analog Output (AO): 2 channel
- Digital Input: 8 DI (NPN/PNP)
- Digital Output:
- 2 DO + 5 relay output
- Pulse input/output: 1 channel
🔗 Communication
- Built-in: RS485 (Modbus RTU)
- Optional:
- Encoder card
- Communication card (Profibus, Profinet, dll)
🧠 Control Function
- 2 group PID control
- Built-in logic:
- Comparator
- Timer
- Arithmetic unit
- Multi-speed & PLC function
- AVR (Automatic Voltage Regulation)
- Automatic carrier frequency adjustment
🛡️ Protection
- Overcurrent
- Overvoltage / undervoltage
- Phase loss
- Overheat
- Motor overload
- Short circuit
- Stall prevention
🌡️ Environment
- Operating temperature: -10 ~ +40°C
- Humidity: 20–90% RH (non-condensing)
- Altitude: ≤1000 m (derating jika lebih)
- Vibration: < 5.9 m/s²

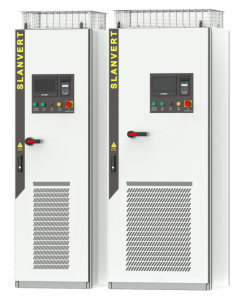

🧱 Structure (Cabinet / CT Type)
Khusus Hope530-CT (Cabinet EPAC):
- Bentuk: panel cabinet industrial (ready panel)
- Protection: IP20 (standard, bisa custom)
- Cooling: forced air cooling
- Fitur tambahan:
- Tombol & lampu indikator configurable
- Optional HMI / LCD
- Internal wiring & proteksi sudah terpasang
⚡ Power Range
- Umumnya: 0.75 kW – ±375 kW (low voltage drive)
